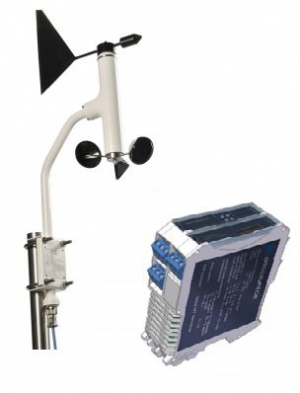

The OMC-150 is an Intrinsically Safe combined wind speed and direction sensor, based on the cup and vane principle. To complete the Intrinsically safe wind system the OMC-158-II is available. A DIN rail mounted Isolator and interface module. Further an Ex junction box is available as OMC-156.
Using a dual wiper potentiometer wind direction is measured without dead-band, while speed is measured using a proximity switch and a code cap. The wind sensor is made from stainless steel and comes with a mounting arm which can be clamped to a mast using two U-Bolts.
The Isolator and interface module is provided with a R422, NMEA output which can be set as 4800 or 9600 baud and can include a VER sentence as well.
Features
- High accuracy sensor according W.M.O.
- Output NMEA0183, RS422 on 4800 or 9600 Baud
- Wind measurement on 4 Hz (standard) or 1 Hz
- VER sentence can be included
- Four status LED’s available
- Compensation (linear wind speed and bracket correction) may be set on or off
- Most cost effective solution for wind measurement in accordance to IEC 60079-14
Downloads
| Sensor Output | Potmeter for direction Pulse signal for speed |
| Dimensions | Weight 5 kg Mounting pole, with two clamps for max. 62 mm dia. |
| Environmental | Operating temperature -25..+70⁰C Ingress Protection: IP67 Humidity 5 to 90% EMC: EN IEC 60945:2002 + C1 |
| Accessories | OMC-156 Ex Junction Box OMC-154 Calibration Certificate |
| Accuracy | Speed 2% FRO Speed range 0,3..75 m/s Direction ± 2 degrees Direction range 0..359⁰ (no gap) |
